Double Clevis Links
Double Clevis Links
Double Clevis Links
All pins Alloy Steel
Quenched and Tempered

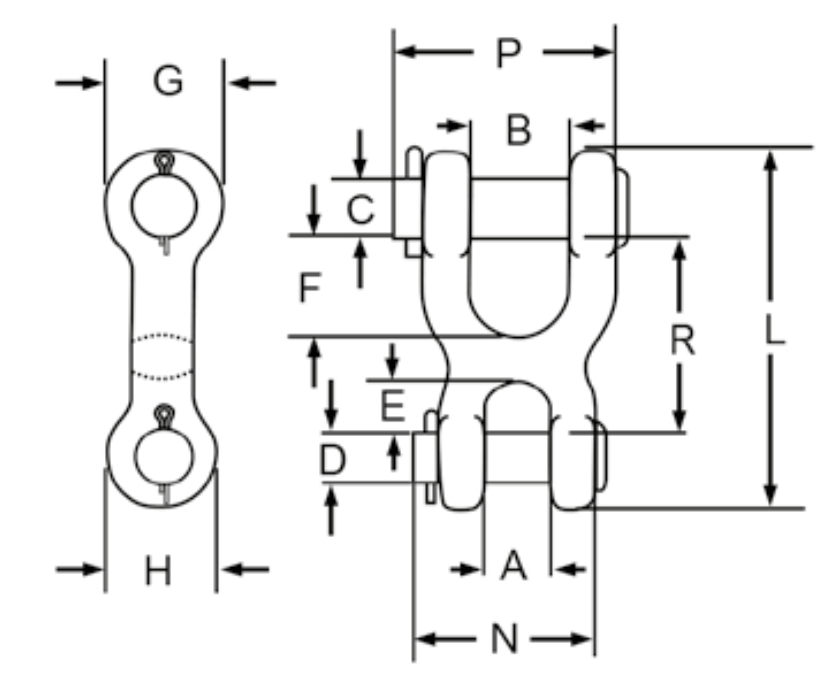

| Size mm | Working Load Limit lbs | A in | B in | C in | D in | E in | F in | G in | H in | L in | N in | P in | R in | Weight Per Piece in lbs | Part No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4 | 2600 | 0.5 | 0.75 | 0.5 | 0.31 | 0.38 | 0.75 | 1 | 0.81 | 2.81 | 1.38 | 1.66 | 1.5 | 0.38 | EG14DCL |
| 5/16 - 3/8 | 5400 | 0.56 | 1 | 0.63 | 0.44 | 0.47 | 1 | 1.19 | 1 | 3.53 | 1.75 | 2.25 | 1.91 | 0.81 | EG516DCL |
| 7/16 | 7200 | 0.69 | 1.13 | 0.69 | 0.56 | 0.59 | 1.09 | 1.31 | 1.19 | 4.06 | 2 | 2.5 | 2.19 | 1.25 | EG716DCL |
| 1/2 | 9200 | 0.81 | 1.25 | 0.75 | 0.63 | 0.68 | 1.25 | 1.44 | 1.31 | 4.53 | 2.25 | 2.75 | 2.47 | 1.56 | EG12DCL |
Warning: Dimensions may vary
